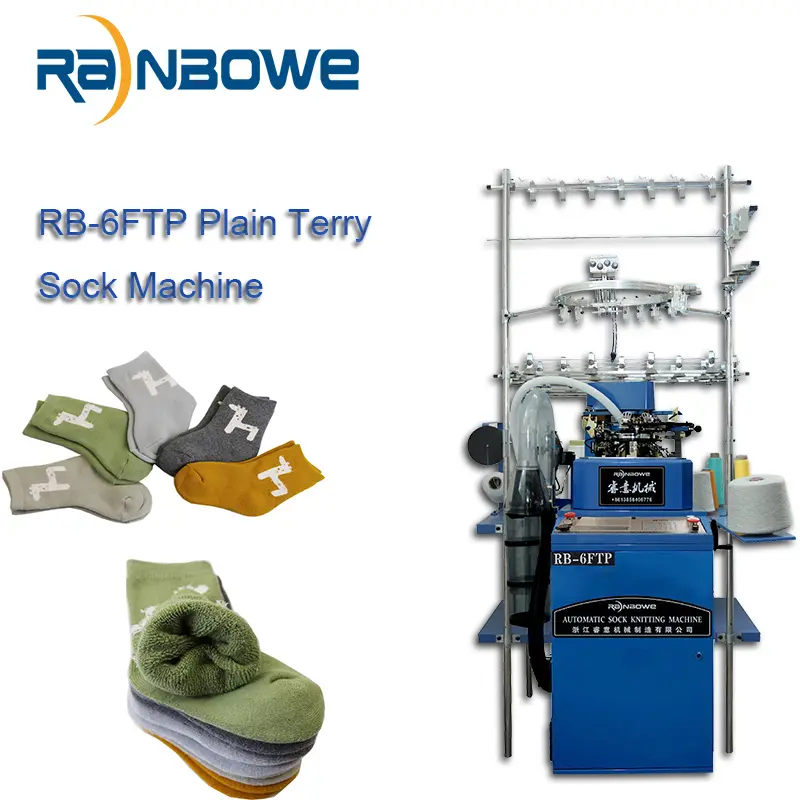

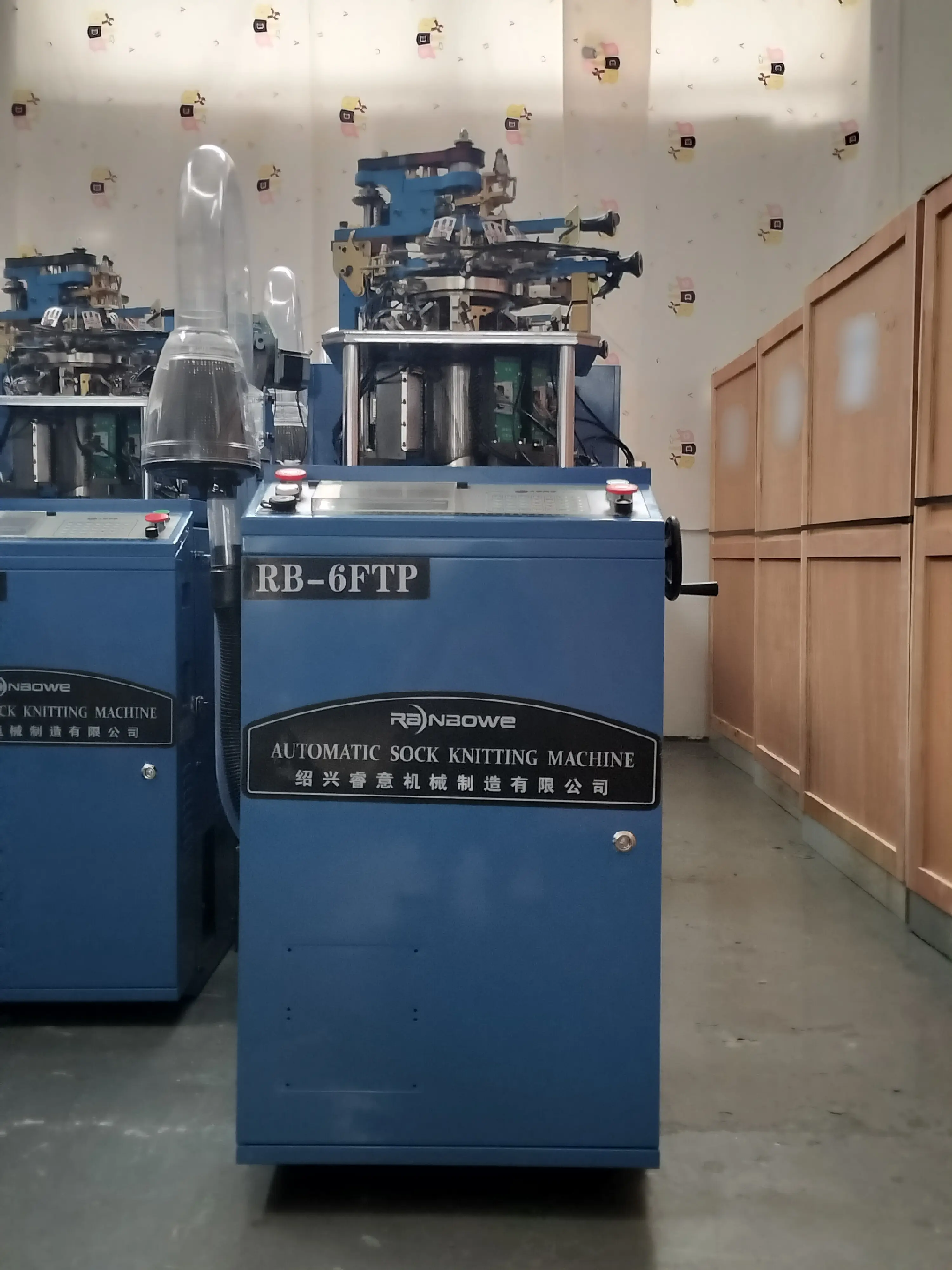

| 3.75 Inch Plain & Terry Socks Knitting Machine Technical Specification | ||
|---|---|---|
| Model | RB-6FTP | |
| Diameter of Cylinder | 3.75" | |
| Needle Count | 96N 108N | Baby Socks |
| 120N | Children Socks | |
| 132N | Teenager Socks | |
| 144N | Ladies or Men’s Socks | |
| 156N 168N | Men’s Socks | |
| 200N | Quality Men’s Socks | |
| Maximum Speed | 280-330R.P.M | |
| Voltage | 380V / 220V | |
| Main Motor | 1.3KW | |
| Fan | ≥1.1KW (Optional) | |
| Gross Weight | 300KGS | |
| Package Size | 0.94*0.75*1.55M (1.1m³) | |
| Production Capacity | 250-400 Pairs/24 hours according to different sizes of sock | |
Types of Socks can be made:
Pre-production Equipment: Air Compressor, Air Compressor Storage Tank, Filter, Cooling Drier, Stabilizer, Suction Fan Motor
Sock Toe Closing Machine: Model 181, 282, 383, 585, 686 (1 to 6 motor options)
Sock Boarding Machine: Electrical, Box, or Rotary types available.
3.75 inch cylinder
The most important part of socks machine used to knit socks. Needle counts can be chosen according to age groups.
Selector
Used to control Jacquard needles for custom patterns. Uses durable round wire for longer life.
Pattern designing software
Easy software installable on personal computers for DIY sock designs.
Double use machine
RB-6FTP is suitable for both summer (plain thin) and winter (terry thick) socks.
Sock Toe Linking Machine
Yarn Winding Machine
Simple Sock Boarding Machine
Box Sock Boarding Machine
Sock Turn Over Machine
Sock Tagging Machine
Air Compressor
Sock Yarn
Sock Dotting Machine
