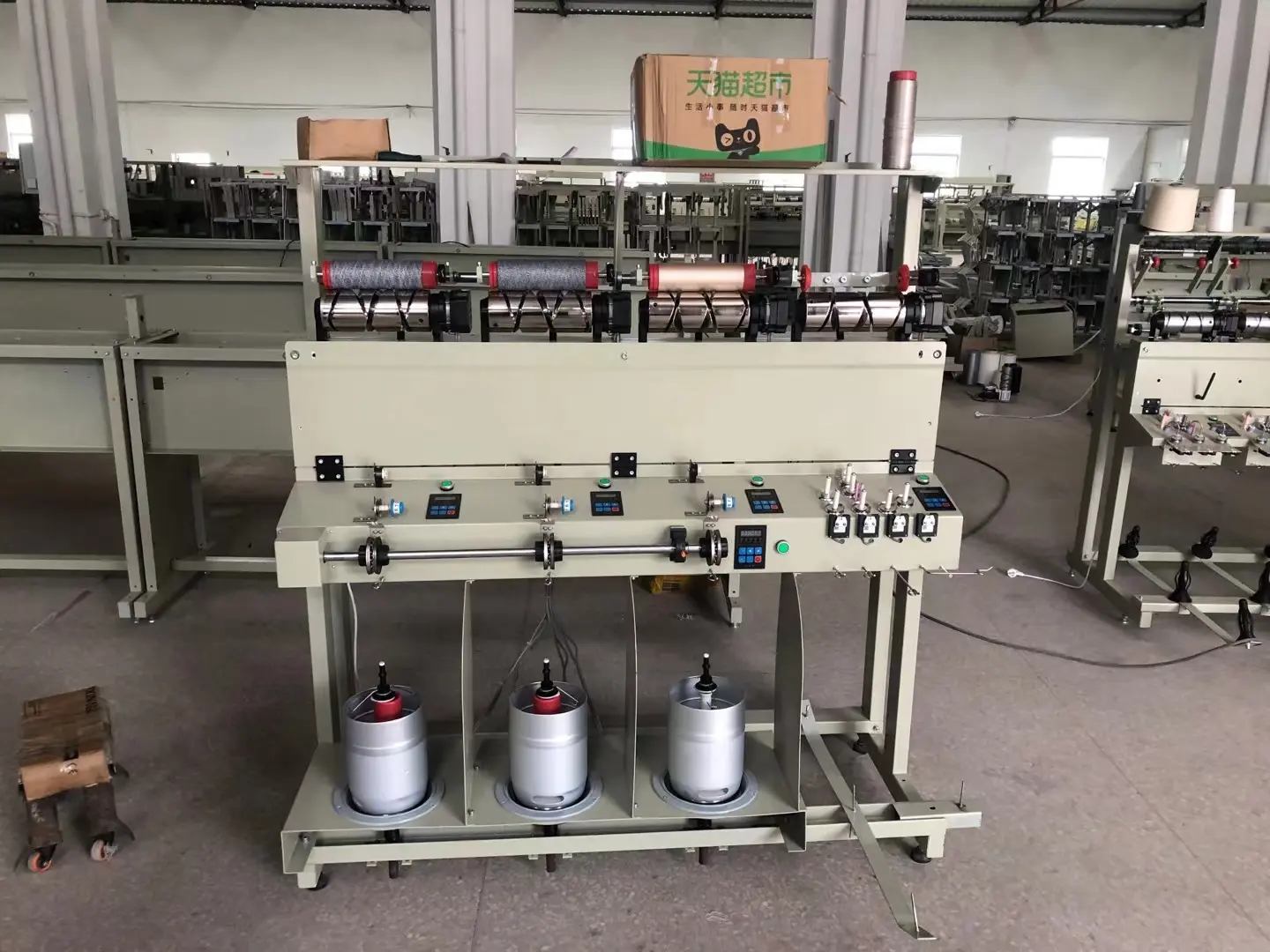

⚙️ Product Application
It is suitable for all kinds of spun yarn twisting and doubling on one machine. It is convenient for proofing. The twist of each spindle yarn can be adjusted independently, the yarn breaking can stop automatically.
| Power Supply |
Single phase 220V 50HZ |
| Consumption Power |
90W/spindle for doubling and 180W/spindle for twisting at the highest speed |
| Machine Specification |
Single side machine, 2 spindles/set, 4 spindles/set, 6 spindles/set |
| Bobbin Diameter |
Maximum winding diameter is 250 mm |
| Yarn Winding Weight |
Maximum 2KG |
| Yarn Winding Speed Range |
100-800m/min |
| Direction of Twist |
It can adjust S or Z direction |
⭐ Product Advantage
✔
Each spindle is independently controlled by computer numerical control, with simple structure and convenient operation.
✔
The twist of 10-800 twists is independently adjusted by numerical control, which can save employees' energy.
✔
Automatic stop function of machine yarn breakage alarm greatly saves yarn material and reduces the strength of staff watching machine.
✔
Yarn doubling and twisting by independently motor control, two functions do not interfere with each other, it can realize one machine dual use.
❓ Frequently Asked Questions
Q: What types of yarn is this twisting machine suitable for?
A: It is versatile and suitable for all kinds of spun yarn twisting and doubling operations.
Q: Can the twist settings be customized for individual spindles?
A: Yes, each spindle is independently controlled by computer numerical control, allowing you to adjust the twist and operation of each spindle separately.
Q: Does the machine stop automatically if the yarn breaks?
A: Yes, the machine includes an automatic stop function with an alarm for yarn breakage, which helps prevent material waste and reduces labor intensity.
Q: What is the twist range and direction capability?
A: The twist can be adjusted between 10-800 twists via numerical control, and it supports both S and Z direction adjustments.
Q: Is it possible to use the machine for both doubling and twisting simultaneously?
A: Yes, since yarn doubling and twisting are managed by independent motor controls, these functions do not interfere with each other, enabling dual use on one machine.
Q: What are the available machine specifications?
A: We offer single-sided machines in configurations of 2 spindles per set, 4 spindles per set, and 6 spindles per set.
