Wholesale Hot sale rosso sock toe sewing machine Manufacturers, Suppliers

Product Description

We have probably the most state-of-the-art output equipment, experienced and qualified engineers and workers, recognized good quality manage systems plus a friendly skilled income workforce pre/after-sales support for Hot sale rosso sock toe sewing machine. We welcome an prospect to do enterprise along with you and hope to have pleasure in attaching further more information of our items.

Custom orders are acceptable with different quality grade and customer’s especial design. We are looking forward to establish the good and successful cooperation in business with long terms from the customers of all over the world.

Product Video

▶ 181 one motor Sock Toe Closing Machine

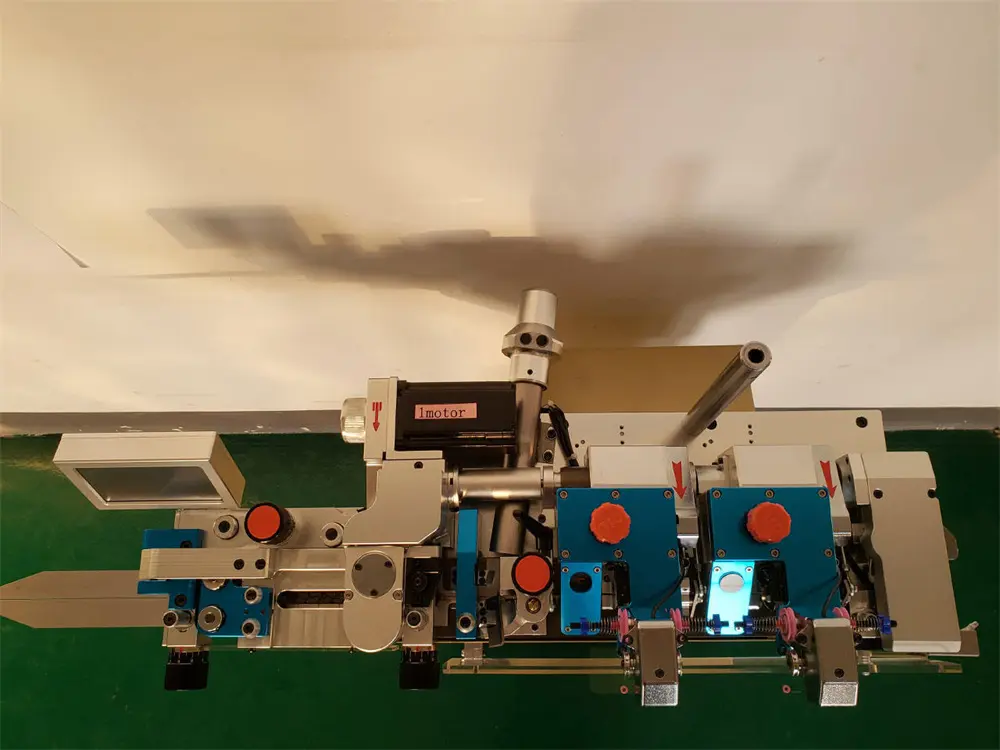

Sock Toe Sewing Machine

Product Description

  • Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.
  • Adopting automatically cutting device, the sutures will be cutting unified length.
  • Turnover yarn feeding device makes the yarn cleaning conveniently. Built-in automatic hoisting device is for conveying purpose, assure the socks’ planeness.
  • An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed, which reduces the waste of sutures substantially when sewing.
  • Adjusting the sewing density of socks is available with a renewal gear.

Technical Parameters

Production Capacity 800 pairs/hour
Motor 1 brushless motor
Voltage 220V
Frequency 50HZ
Power 570W (Fan: 370W, Main process equipment: 200W)
Gross Weight 115KGS
Net Weight 66KGS
Package Size 1 * 0.48 * 1.3M

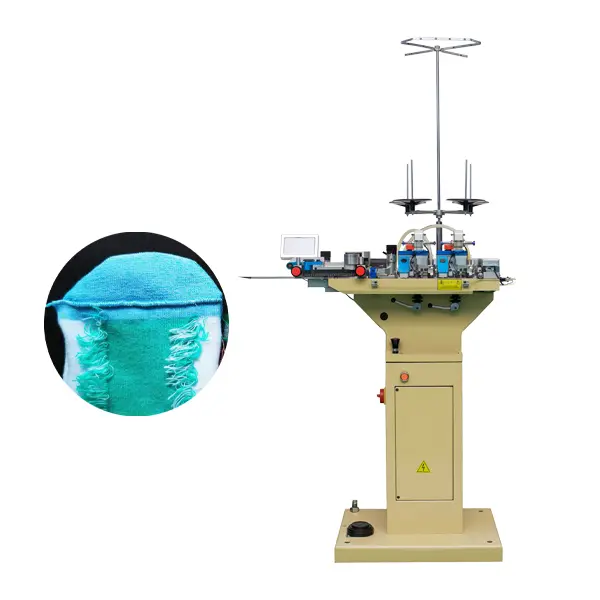

Technical Detail

Sock Production Line

The finished socks from sock knitting machine is not completed, so sock toe linking machine is used to make toe closed. There are several types can be offered: one linking motor 181, two linking motor 282, three linking motor 383, five linking motor 585, six linking motor 686. The more linking motor, the better linking effect.

One/ Two/ Three linking motor will be more popular to be purchased. (Sock Tagging Machine, Yarn Winding Machine, Grinding Machine depends on your own needs)

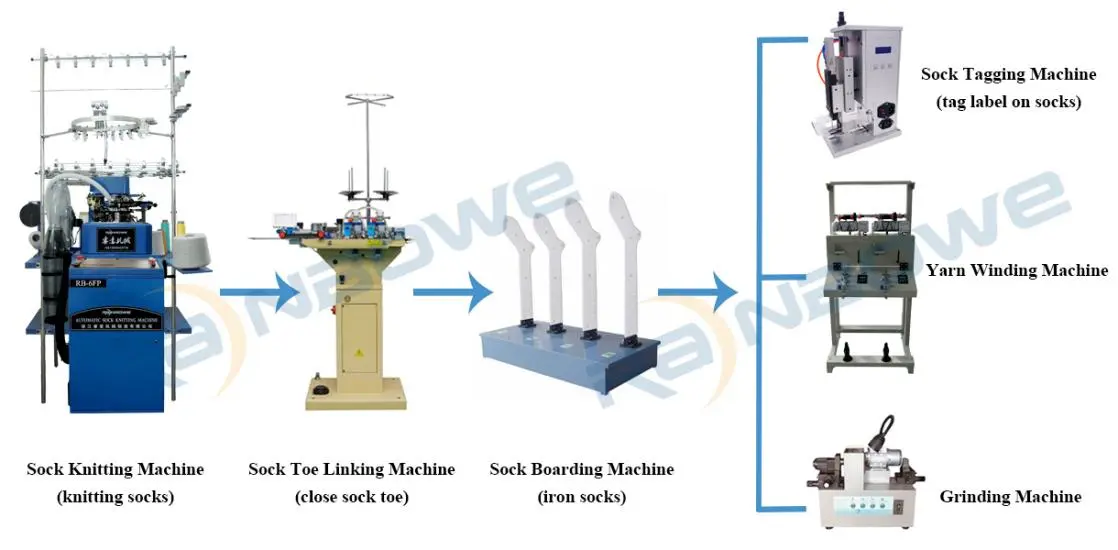

Production Line View

Sock Turn Over Machine

We have probably the most state-of-the-art output equipment and recognized good quality manage systems for Hot sale Cotton Socks, Combed Cotton Socks, and Striped Women Socks. Custom orders are acceptable with different quality grades and customer especial designs.

Frequently Asked Questions

What is the maximum production capacity of the sock toe sewing machine?
The machine has a high production capacity of approximately 800 pairs per hour, making it highly efficient for industrial use.
How does the automatic lubricating system benefit the operation?
The automatically lubricating nose device ensures a longer performance life for the machine parts and provides a quieter working environment.
Can the sewing density of the socks be customized?
Yes, the sewing density is easily adjustable via a renewal gear, allowing for different finishes and quality requirements.
What types of linking motors are available for the production line?
We offer various models including 1, 2, 3, 5, and 6 linking motors. Generally, a higher number of motors results in a superior linking effect.
What are the power requirements for this equipment?
The machine operates on a 220V voltage at 50HZ, with a total power consumption of 570W (including the fan and main process equipment).
How is yarn waste reduced during the sewing process?
The machine utilizes an optical fiber inductive time lapse function which sets the delay time according to the running speed, substantially reducing suture waste.
