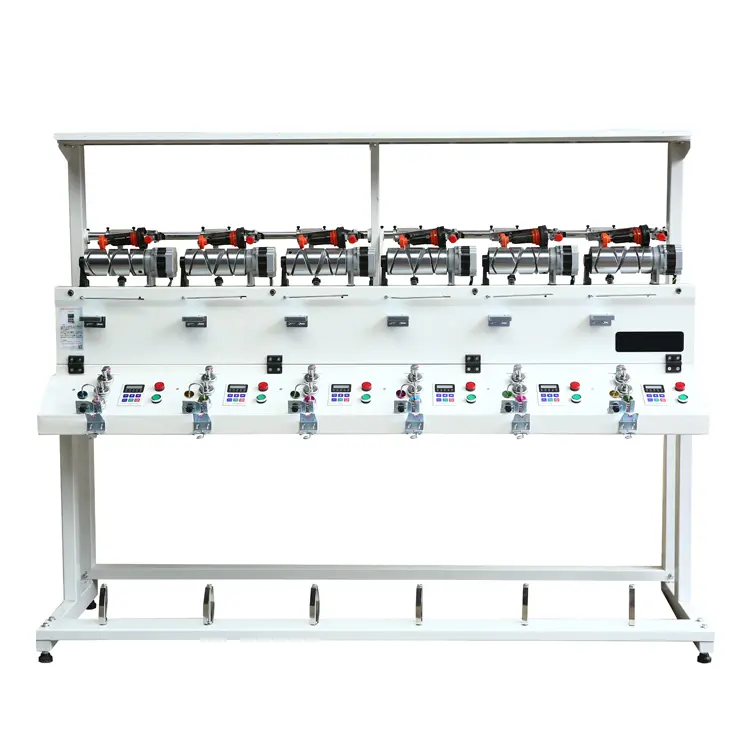

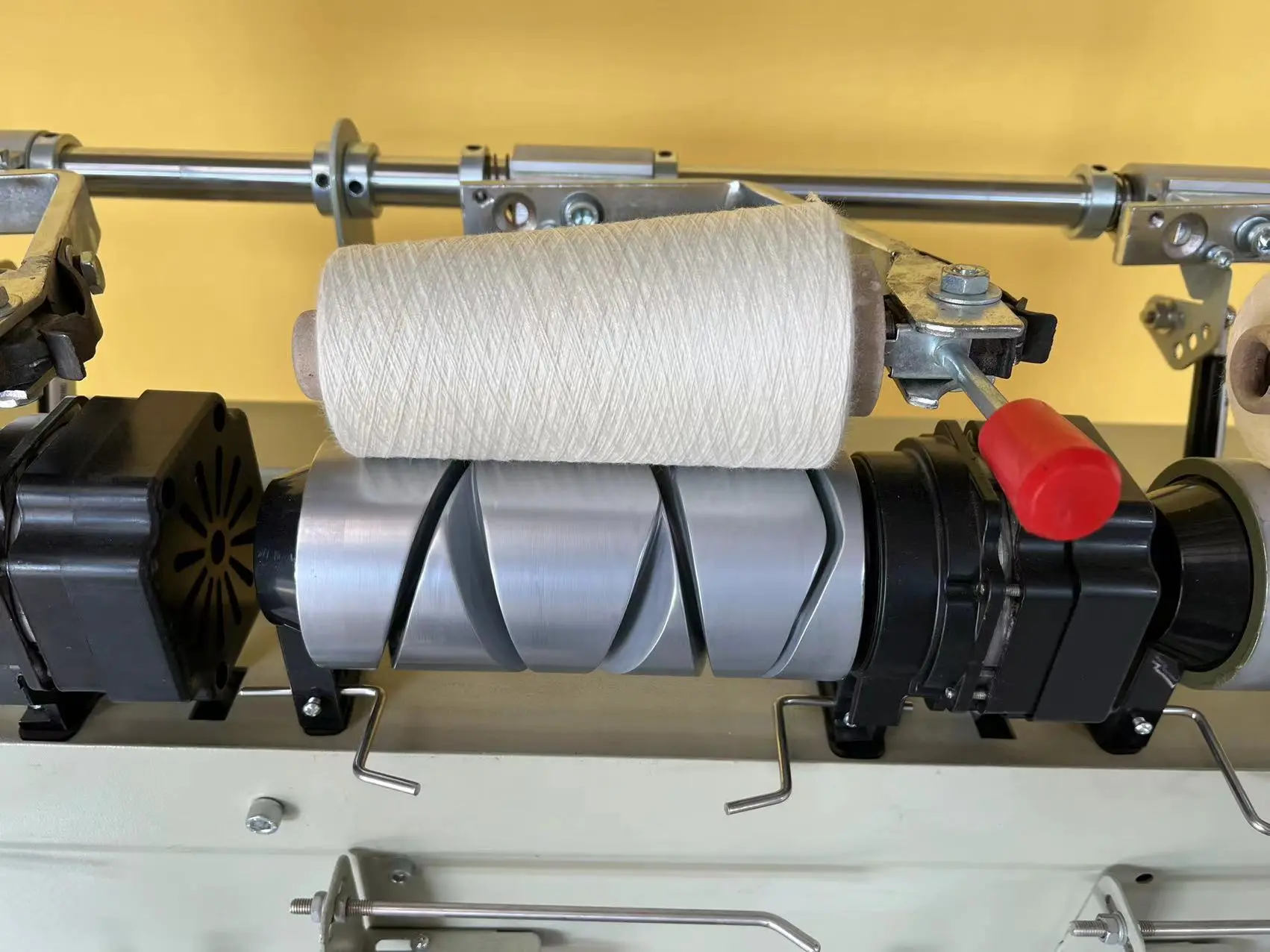

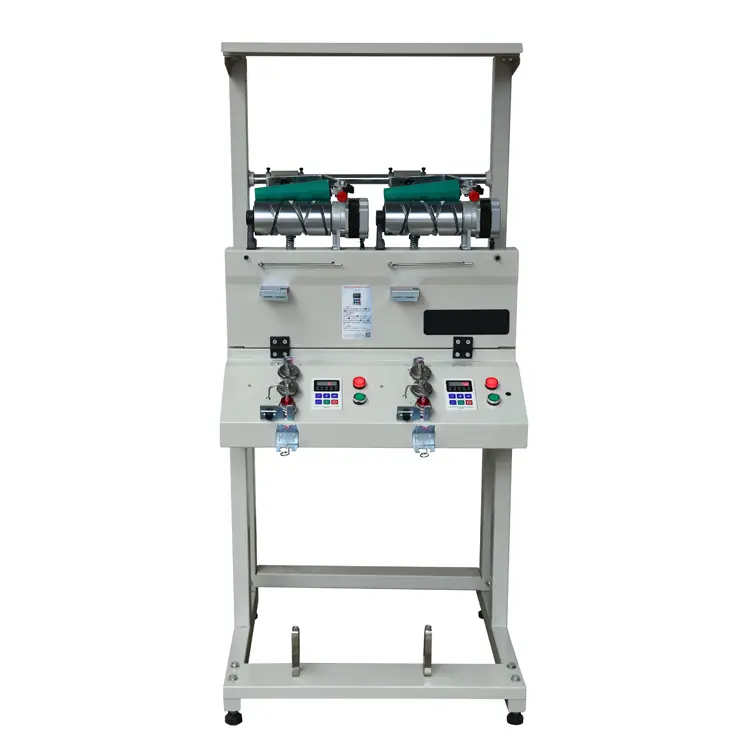

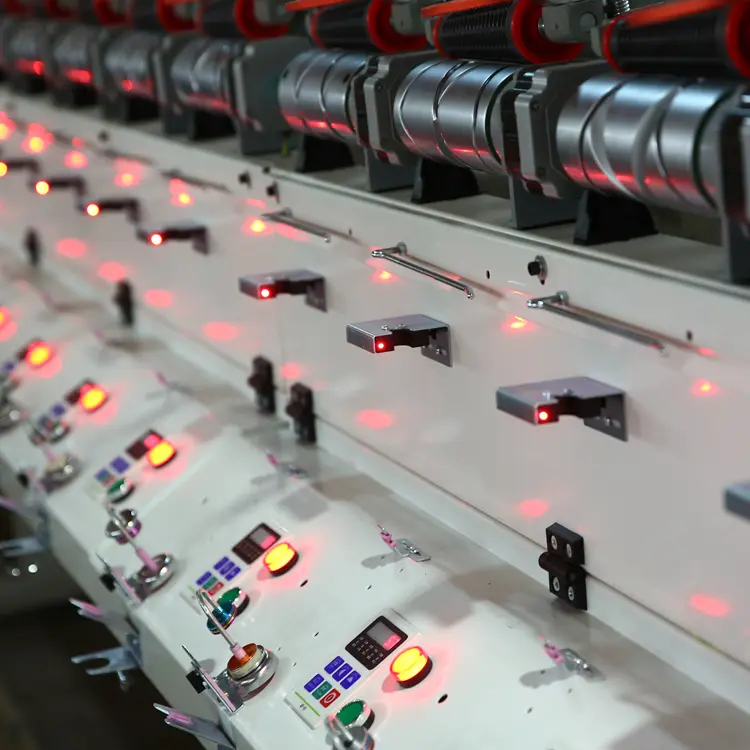

China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
1 / 5
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn
China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn

China Factory Price 4 Spindle Yarn Ball Winding Machine Polyester Yarn

Send Inquiry

Product Description

Automatic Winding Machine
Product Advantage
Disconnection alarm automatic stop: It effectively saves yarns and reduces manual effort.
Slow start function: Effectively prevents the stretching and breaking of cashmere yarn, ensuring high-speed stability.
High Speed & Stability: Operates 2.5 times faster than traditional machines. Fixed bobbin spindle springs ensure more stable winding.
Precision Calculation: Single spindle independent calculation reduces mistakes in color matching and minimizes raw material waste.
Energy Saving: Utilizes DC and AC motor drives to save up to one-third of electricity costs.

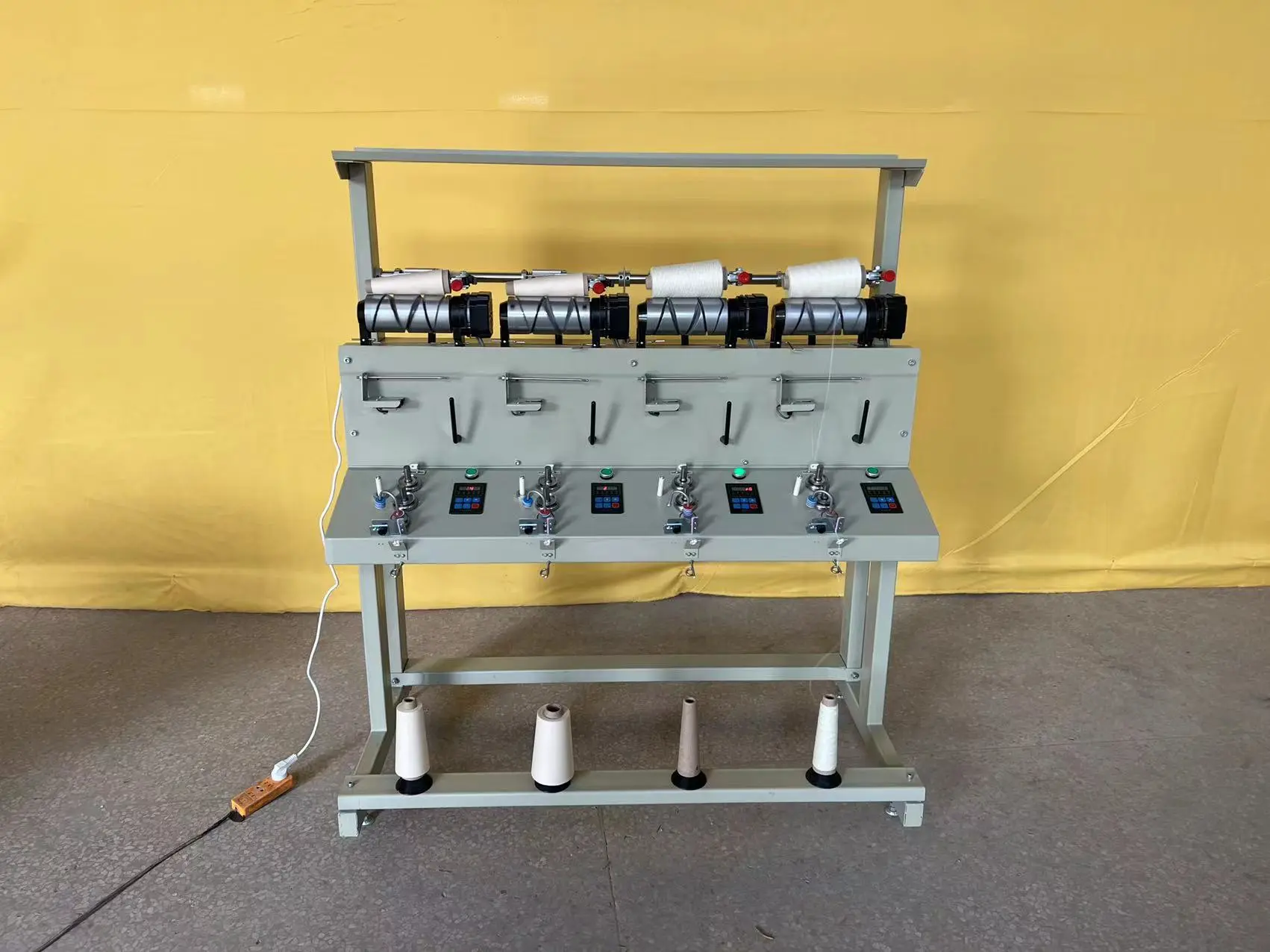

Machine Details
Technical Specifications
FunctionSuitable for soft cone winding before yarn dyeing
Power SupplySingle phase 220V 50/60HZ
Consumption Power75W/spindle at the highest speed
DriveSingle spindle independent DC motor drive
Machine SpecificationDouble-sided machine
Suitable Yarn RangeAll kinds of dacron, polyamide fiber, cotton winding. Polyester: 70D-1000D, Cotton: 1S-80S
Tube SizeStandard 175mm dye tube (Customizable)
Bobbin DiameterMaximum winding diameter 250mm
Speed Range100-1000m/min
Anti-patterningElectrical Wobble Frequency controlled by converter
Tension DeviceRotating tension slices for every spindle
Automatic StopInfrared sensor controlled yarn breakage stop
Speed RegulationVariable frequency control with slow start

The automatic winding machine is suitable for winding sewing thread, embroidery thread, nylon thread etc. It features automatic feed bobbin and change bobbin devices, enabling full automatic high-speed operation.

Winding Process 1 Winding Process 2 Winding Process 3 Winding Process 4 Winding Process 5
Frequently Asked Questions
Q1: What types of yarn can this winding machine handle? A: It is suitable for all kinds of dacron, polyamide fiber, and cotton yarns. This includes polyester fiber thicknesses from 70D-1000D and cotton yarn thicknesses from 1S-80S.
Q2: How does the automatic stop feature work? A: The machine is equipped with infrared sensors that detect yarn breakage. If a disconnection occurs, the individual spindle will trigger an alarm and stop automatically to save material.
Q3: Is the winding speed adjustable? A: Yes, the machine uses variable frequency speed control with a range of 100 to 1000 meters per minute, including a slow start function to prevent yarn stretching.
Q4: Can the machine accommodate different tube sizes? A: The standard length is 175mm for dye tubes, but we can customize the machine settings according to your specific tube models.
Q5: How energy efficient is this automatic winder? A: By utilizing both DC and AC motor drives, the machine can save approximately one-third of the electricity compared to traditional winding equipment.
Q6: What is the maximum winding diameter supported? A: The machine supports a maximum winding diameter of 250mm, ensuring large capacity production.
