Product Description

Product Image
Product Advantage
1
Disconnection alarm automatic stop, it can save a lot of yarns and manual effort.
2
Slow start can effectively prevent the stretching and breaking of cashmere yarn, laying the foundation for high speed operation.
3
The machine operated well at high speed and high quality, reaching 2.5 times the production of traditional winding machines. Both sides feature fixed bobbin spindle springs for more stable winding.
4
Single spindle calculation of meters reduces mistakes when making the same color yarns or winding to other tubes, ensuring even distribution and reducing raw material waste.
5
Equipped with DC motor Drive and AC motor, saving up to a third of electricity bills.
Winding Machine Details
Technical Specifications
FunctionSuitable for soft cone winding before yarn dyeing
Power SupplySingle phase 220V 50/60HZ
Consumption Power75W/spindle at the highest speed
DriveSingle spindle independent DC motor drive
Machine SpecificationDouble-sided machine
Suitable Yarn RangeUsed for all kinds of dacron, polyamide fiber, cotton winding before dyeing. Polyester fiber thickness: 70D-1000D, Cotton yarn thickness: 1S-80S
Tube SizeLength is 175mm dye tube, also customizable
Bobbin DiameterMaximum winding diameter is 250mm
Winding Speed Range100-1000m/min
Anti-patterning FunctionElectrical Wobble Frequency, controlled by converter
Tension DeviceEvery spindle configuration of rotating tension slices
Thread Stop DeviceAutomatic stop of yarn breakage controlled by infrared sensor
Speed RegulationVariable frequency speed control and slow start device

The automatic winding machine is specifically designed for winding sewing thread, embroidery thread, and nylon thread. It features a sophisticated system for automatic feed bobbins and fast bobbin changes, ensuring full automatic high-speed operation and maximum efficiency for textile production lines.

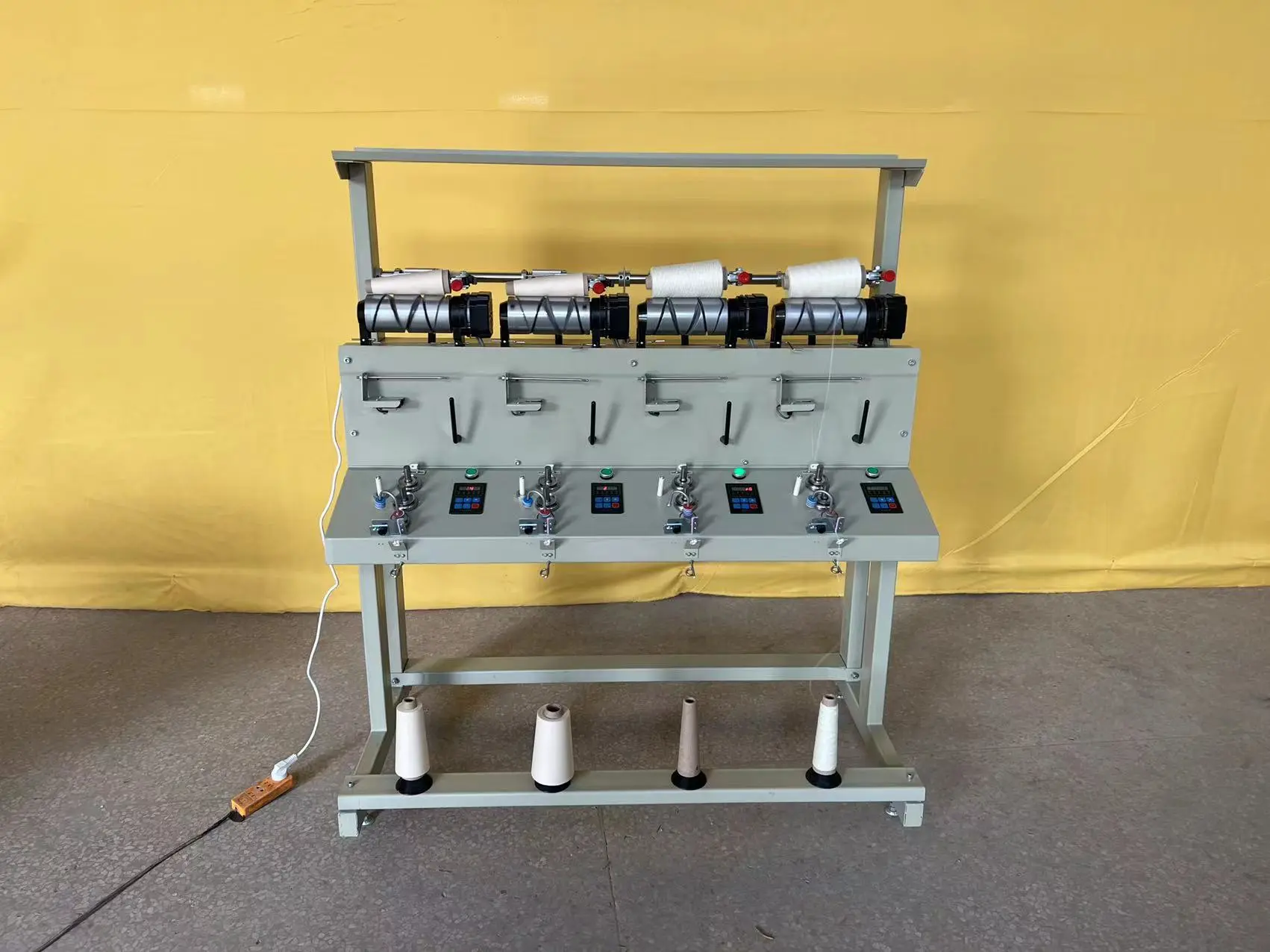

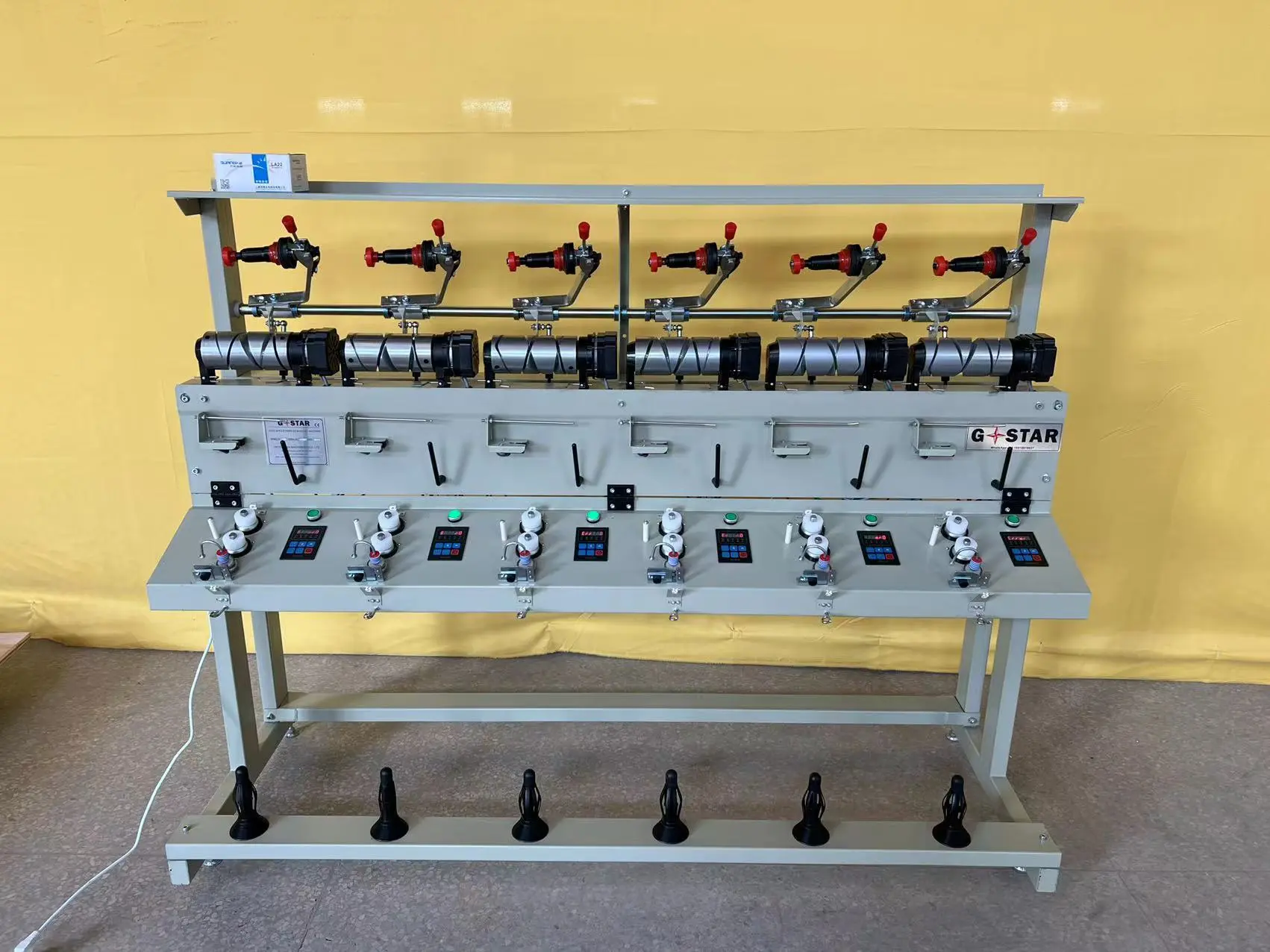

Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Frequently Asked Questions (FAQ)
Q1: What types of yarn can this automatic winding machine handle? A: It is suitable for a wide range of yarns including dacron, polyamide fiber, cotton, sewing thread, embroidery thread, and nylon. It supports polyester thickness from 70D-1000D and cotton yarn from 1S-80S.
Q2: How does the machine help in reducing material waste? A: The single spindle independent meter calculation ensures yarns are evenly distributed, and the infrared-controlled automatic stop device halts operation immediately upon yarn breakage, minimizing raw material waste.
Q3: Is the machine energy efficient? A: Yes, by utilizing both DC and AC motor drives, the machine can help save approximately one-third of the electricity compared to traditional models.
Q4: What is the maximum production speed of the machine? A: The yarn winding speed range is between 100 to 1000 meters per minute, which is roughly 2.5 times faster than traditional winding machines.
Q5: Can the tube size be customized for specific requirements? A: While the standard length is a 175mm dye tube, we offer customization according to the customer's specific tube model requirements.
Q6: How does the "Slow Start" feature benefit production? A: The slow start device prevents delicate yarns like cashmere from stretching or breaking during the initial startup phase, ensuring high-quality results even at high operating speeds.
