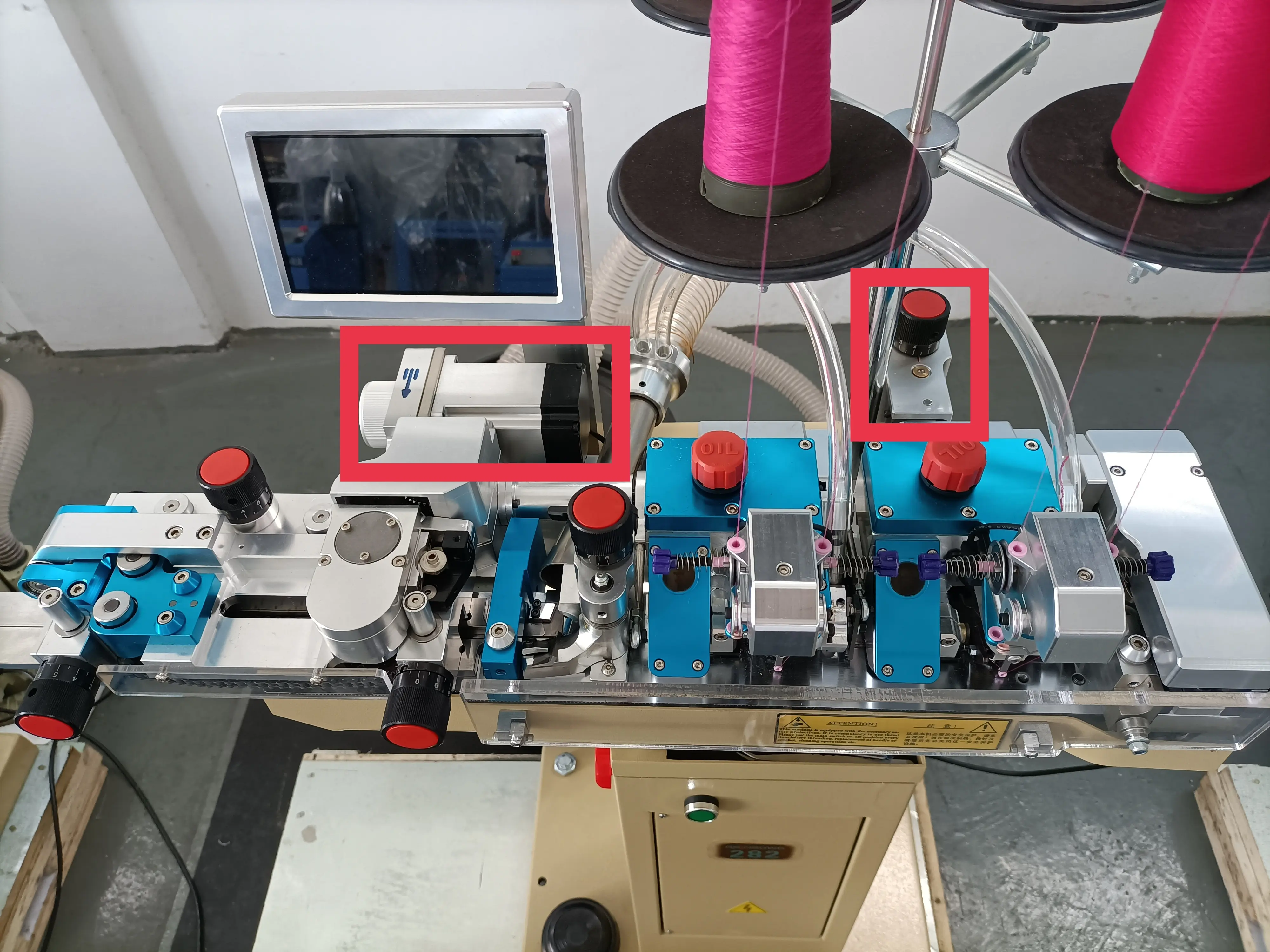

282 Two Motor Sock Toe Closing Machine
💡 Product Description
✔
Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.
✔
Adopting automatically cutting device, the sutures will be cutting unified length.
✔
Turnover yarn feeding device makes the yarn cleaning conveniently. Built-in automatic hoisting device is for conveying purpose, assure the socks’ planeness.
✔
An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed, which reduces the waste of sutures substantially when sewing.
✔
Adopting dual channel nose device, makes the sock sewed with fine flat seams, even similar as handsewer.
✔
Adjusting the sewing density of socks is available with a renewal gear.
✔
Point-contact touch screen computer control system makes it easy to handle.
✔
There is an automatic hoisting device inside the second nose, which can be adjusted by computer. That comes to an easier and more accurately handling, and prevents the sutures from showing up.
📊 Technical Parameters
| Production Capacity |
800 pairs/hour |
| Motor |
2 motors; 1 brushless motor, 1 stepper motor |
| Voltage |
220V |
| Frequency |
50HZ |
| Power |
Fan: 370W, Main process equipment: 220W |
| Gross Weight |
120KGS |
⚙️ Sock Production Line
The finished socks from sock knitting machine is not completed, so sock toe linking machine is used to make toe closed.
There are several types can be offered: one linking motor 181, two linking motor 282, three linking motor 383, five linking motor 585, six linking motor 686. The more linking motor, the better linking effect.
One/ Two/ Three linking motor will be more popular to be purchased. (Sock Tagging Machine, Yarn Winding Machine, Grinding Machine depends on your own needs).
❓ Frequently Asked Questions
Q1: What is the production efficiency of the 282 model?
A: The 282 Two Motor Sock Toe Closing Machine has a production capacity of approximately 800 pairs per hour.
Q2: How does the dual-channel nose device benefit the sewing quality?
A: The dual-channel design allows the socks to be sewn with fine, flat seams that are very similar to high-quality hand-sewing.
Q3: Is the machine easy to operate for new users?
A: Yes, it features a point-contact touch screen computer control system which makes handling and adjustments straightforward and precise.
Q4: What kind of motors are used in this machine?
A: The machine is equipped with 2 motors: one brushless motor and one stepper motor for reliable performance.
Q5: Does the machine include automatic features to reduce waste?
A: Yes, it includes an optical fiber inductive time lapse function and an automatic cutting device to unify suture length and substantially reduce material waste.
Q6: Can I adjust the sewing density for different types of socks?
A: Yes, the sewing density can be easily adjusted using the machine's renewal gear system to meet specific production requirements.
