Product Description

Sock Toe Closing Machine Header
686 Six Motor Sock Toe Closing Machine

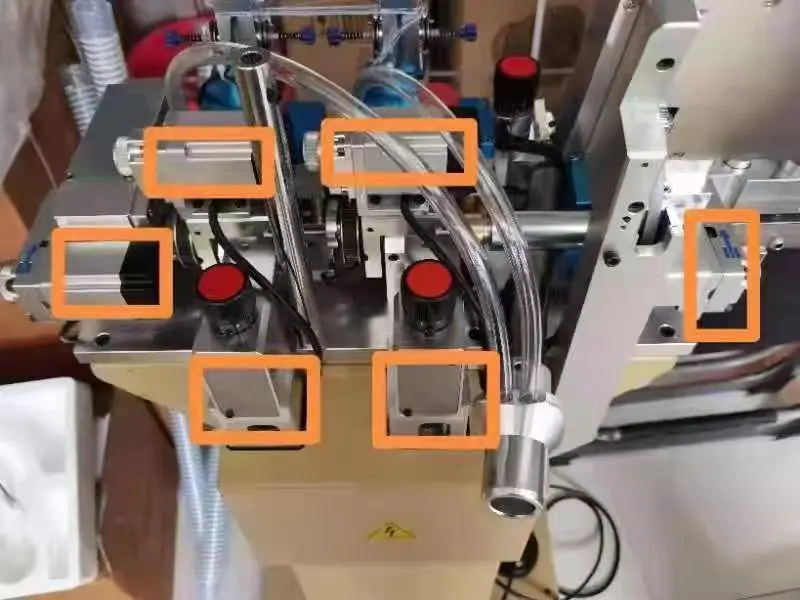

686 Product View
Product Description
⚙️
Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.
✂️
Adopting automatically cutting device, the sutures will be cutting unified length.
🔄
Turnover yarn feeding device makes the yarn cleaning conveniently. Built-in automatic hoisting device is for conveying purpose, assure the socks’ planeness.
📡
An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed, reducing suture waste substantially.
🧵
Adopting dual channel nose device, makes the sock sewed with fine flat seams, even similar as handsewer.
💻
Point-contact touch screen computer control system makes it easy to handle.
⚡
Independent motor system allows arbitrary sewing density and speed adjustment in computer, preventing stretching or shrinkage.
🏗️
Automatic hoisting device between the first and second nose acts as anti-dropping apparatus for better planeness and sewing quality.
Technical Parameters
Production Capacity 800 pairs/hour
Motor 6 motors (4 brushless motors, 2 stepper motors)
Voltage 220V
Frequency 50HZ
Power 630W (Fan: 370W, Main process equipment: 260W)
Gross Weight 120KGS
Net Weight 72KGS
Package Size 1 * 0.48 * 1.3M
Sock Machine Detail 1
Sock Machine Detail 2
Sock Production Line

The finished socks from the knitting machine are not complete; a sock toe linking machine is used to close the toe. Several types are available based on motor count: 181 (one), 282 (two), 383 (three), 585 (five), and 686 (six). More motors result in a better linking effect. One, Two, and Three linking motor versions are popular choices.

Note: Sock Tagging, Yarn Winding, and Grinding Machines are optional based on production needs.

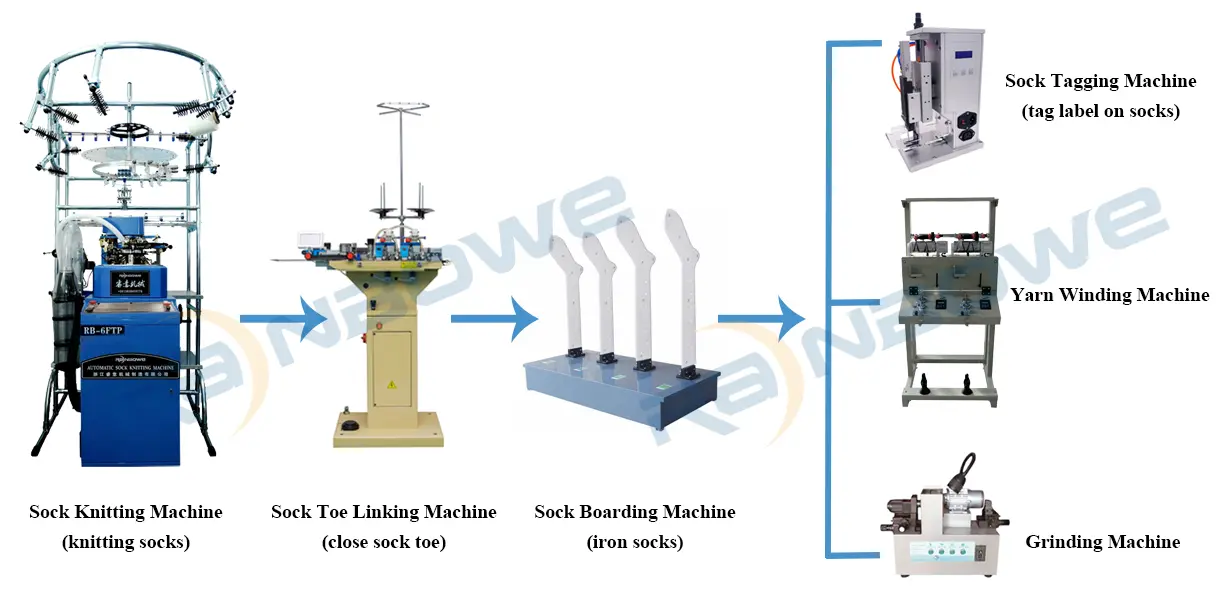

Production Line Layout

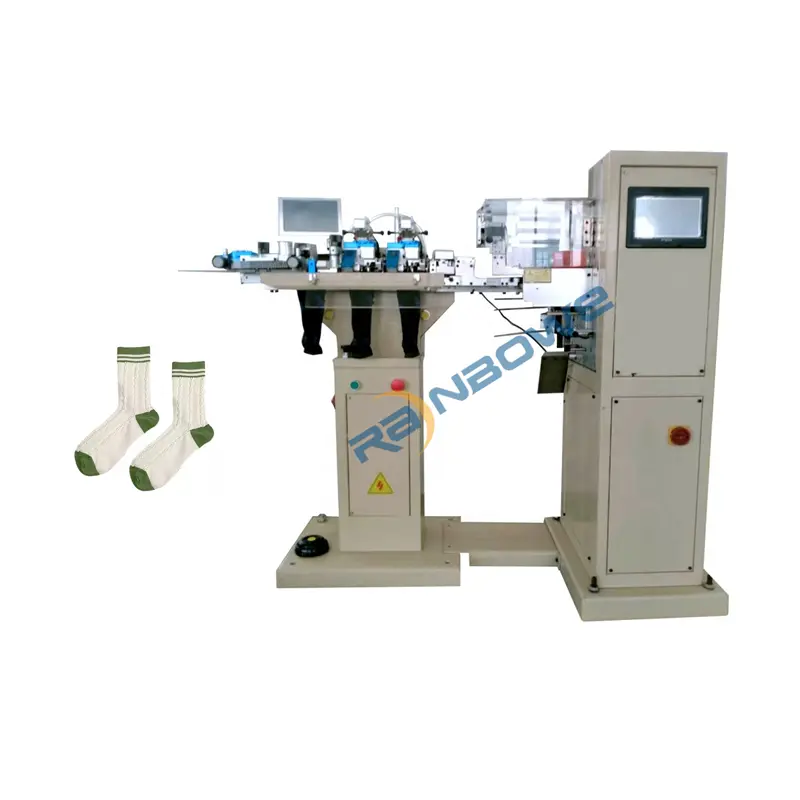

Sock Turn Over Machine
Sock Turn Over Machine

This machine is a sock toe closing machine connected to a sock turning machine, which helps save manpower and time by automatically turning the socks over.

Frequently Asked Questions
Q1: What is the output capacity of the 686 toe closing machine?
A: The machine can process approximately 800 pairs of socks per hour.
Q2: How many motors are used in this equipment?
A: It features a 6-motor system, including 4 brushless motors and 2 stepper motors for high precision.
Q3: How does the sewing quality compare to hand-sewing?
A: By using a dual-channel nose device, the machine produces fine flat seams that are very similar to professional hand-sewing.
Q4: Is the operation system user-friendly?
A: Yes, it is equipped with a point-contact touch screen computer control system for easy handling and adjustments.
Q5: Can the sewing speed and density be adjusted?
A: Yes, the independent motor system allows you to adjust sewing density and speed via the computer to prevent stretching or shrinkage.
Q6: What are the benefits of the integrated turn-over machine?
A: The integrated turn-over machine automates the flipping process, significantly saving manpower and reducing production time.
