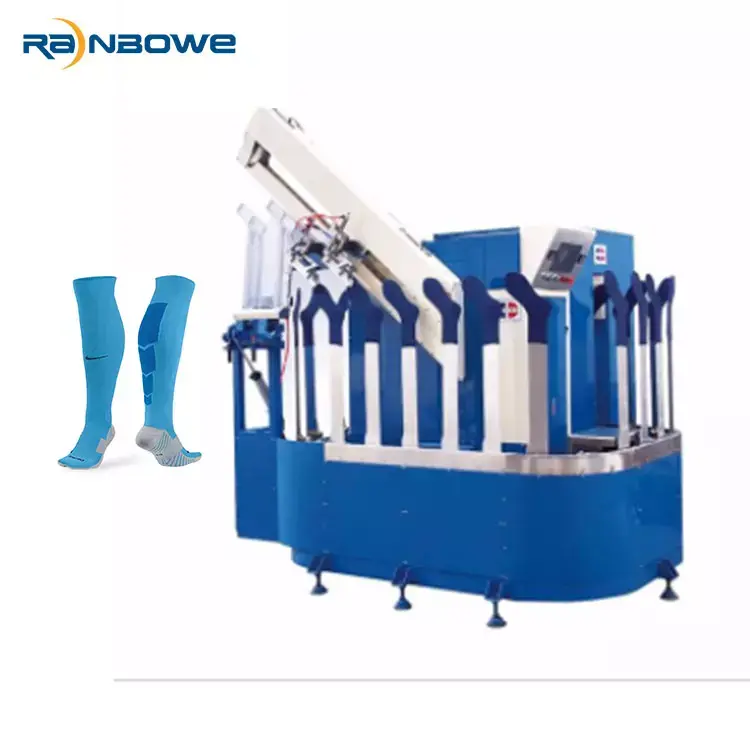

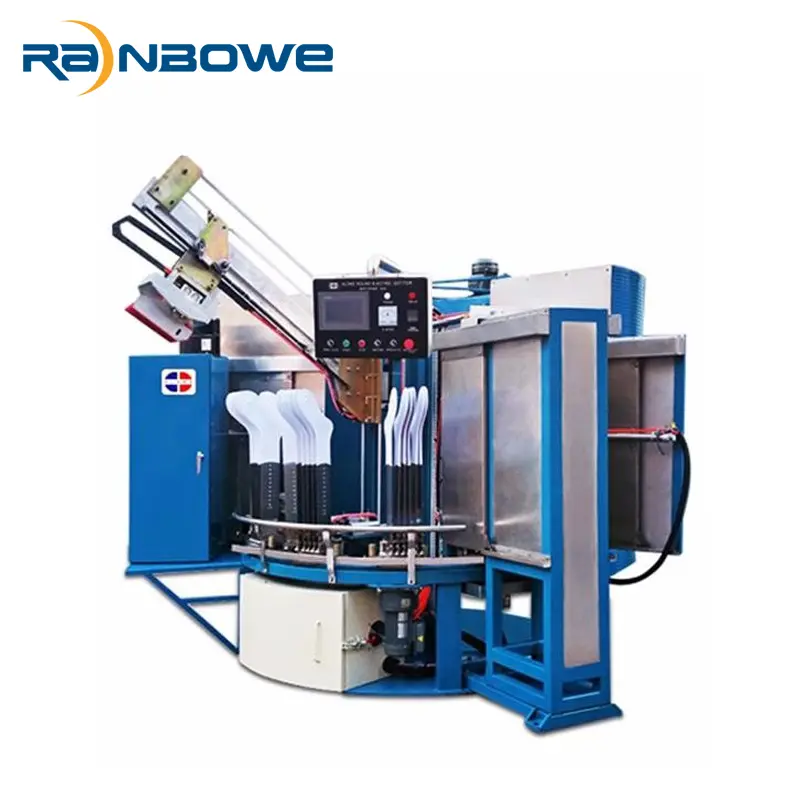

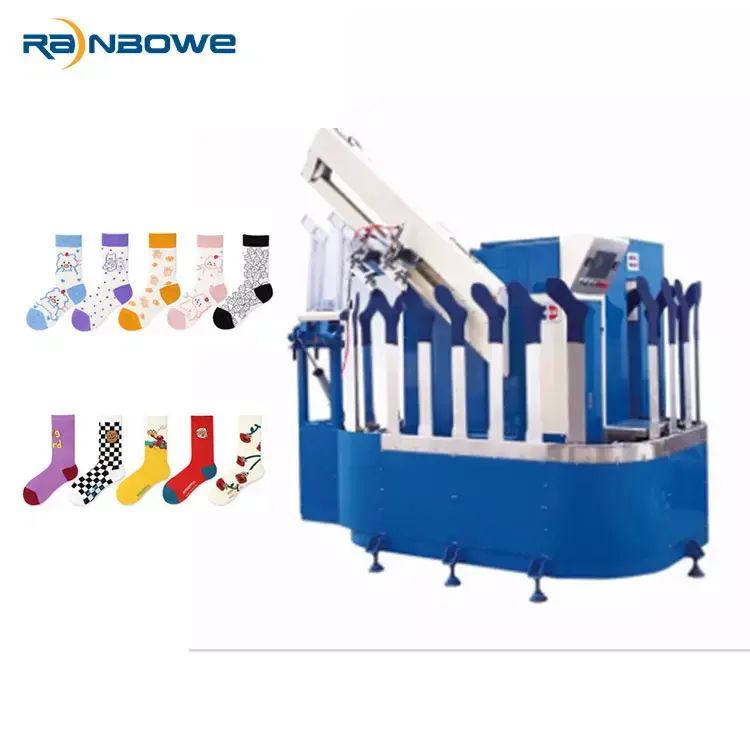

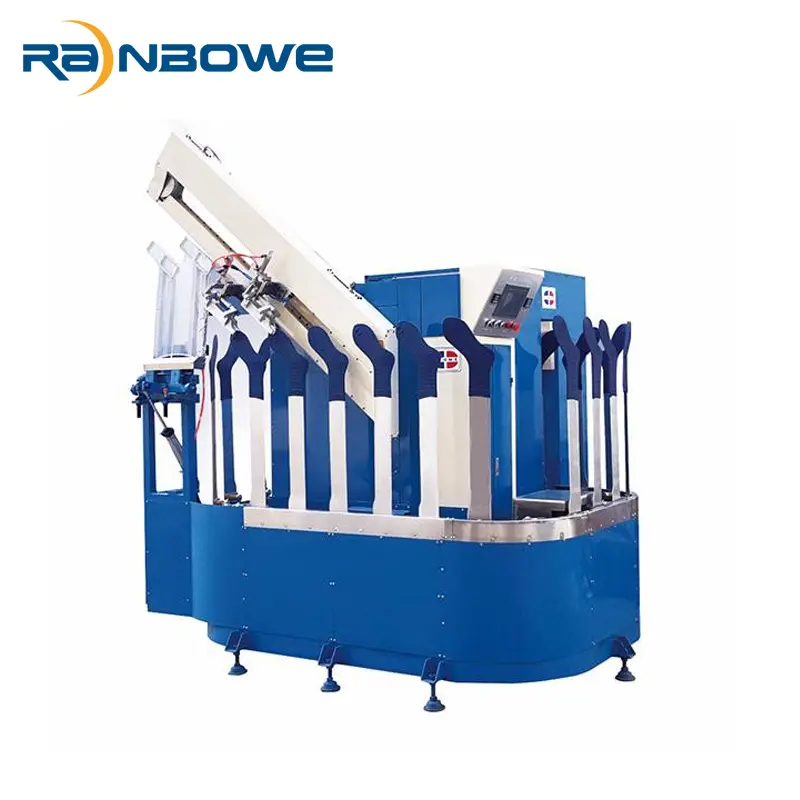

Rotary Socks Boarding Machine
This square rotary steam setter is equipped with auto-stripper, and it can put the socks out totally automatically. It is very competitive in the market, which owns to its small dimension, higher production compared to the same kind of machines and convenience to move and operate.
Technical Specifications
| Model | 24P/28P |
| Operator | 1-2 |
| Socks Form | 24/28 |
| Cycle Time | 6-9sec |
| Capacity (Doz/h) | 60-90 |
| Power | 3P 380V; 4kw/h |
| Air Pressure | 5-7bar |
| Steam Pressure | 3kg/cm2 |
| Steam Consumption | 70kg/h |
| Dimension (L*W*H, mm) | 2500*2200*3000 |
| Weight (Kgs) | 1500 |

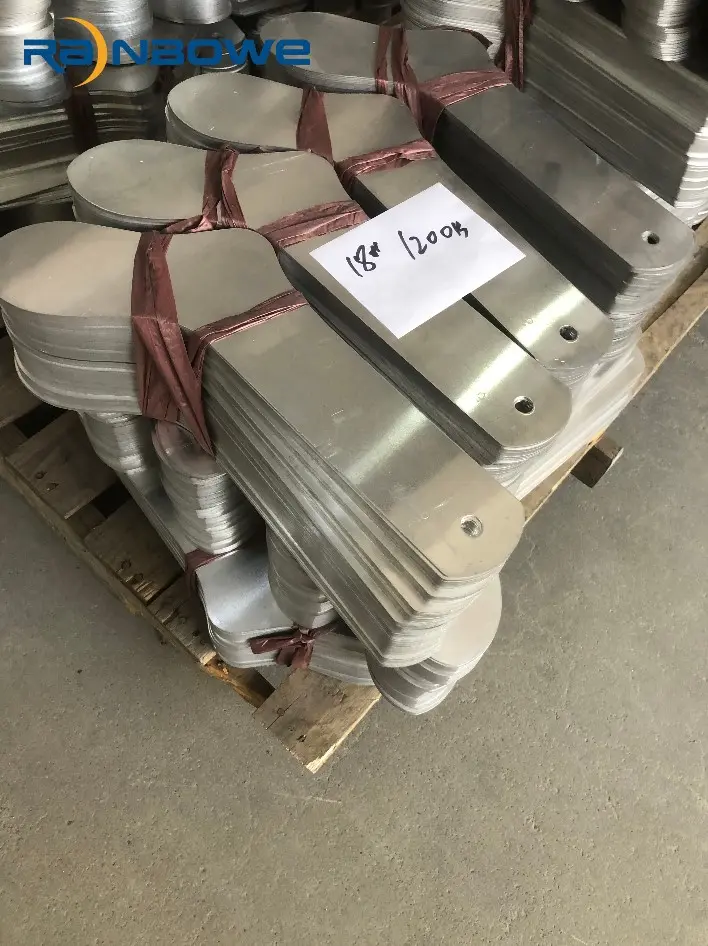

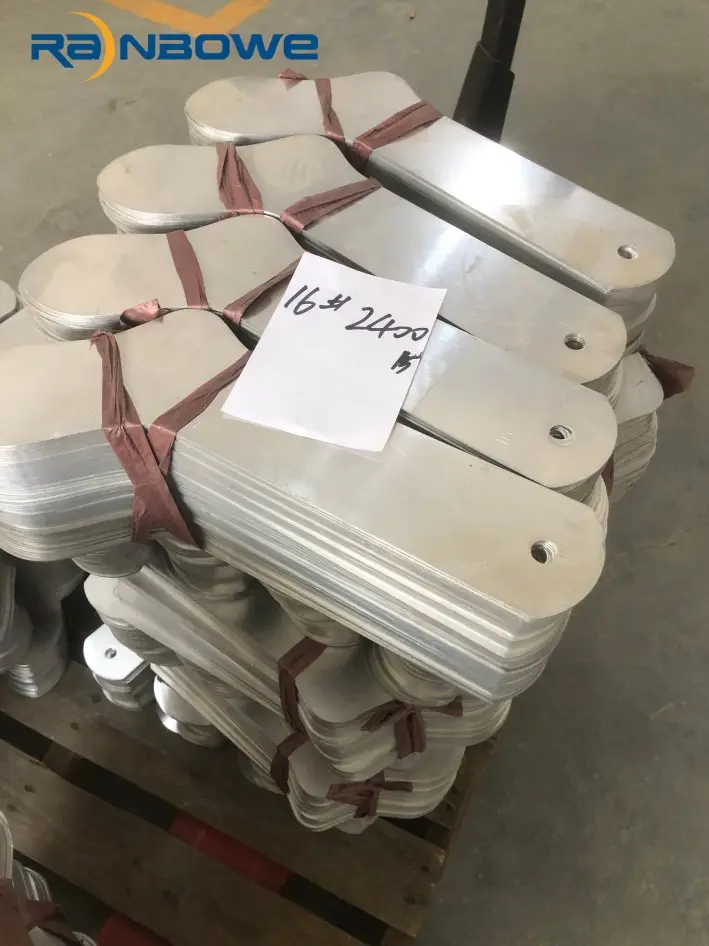

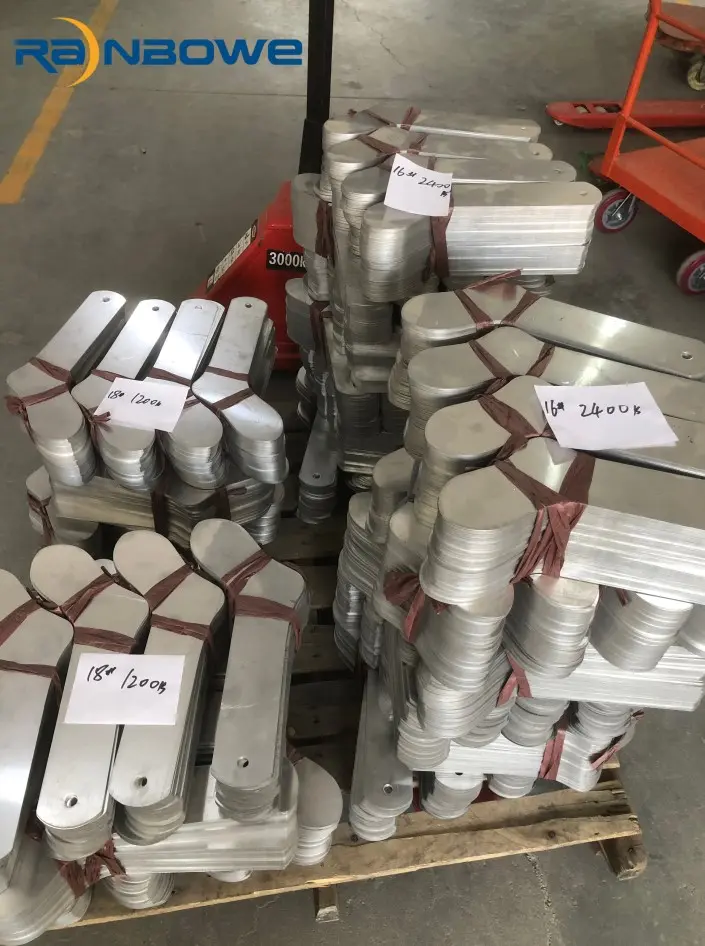

Spare Parts

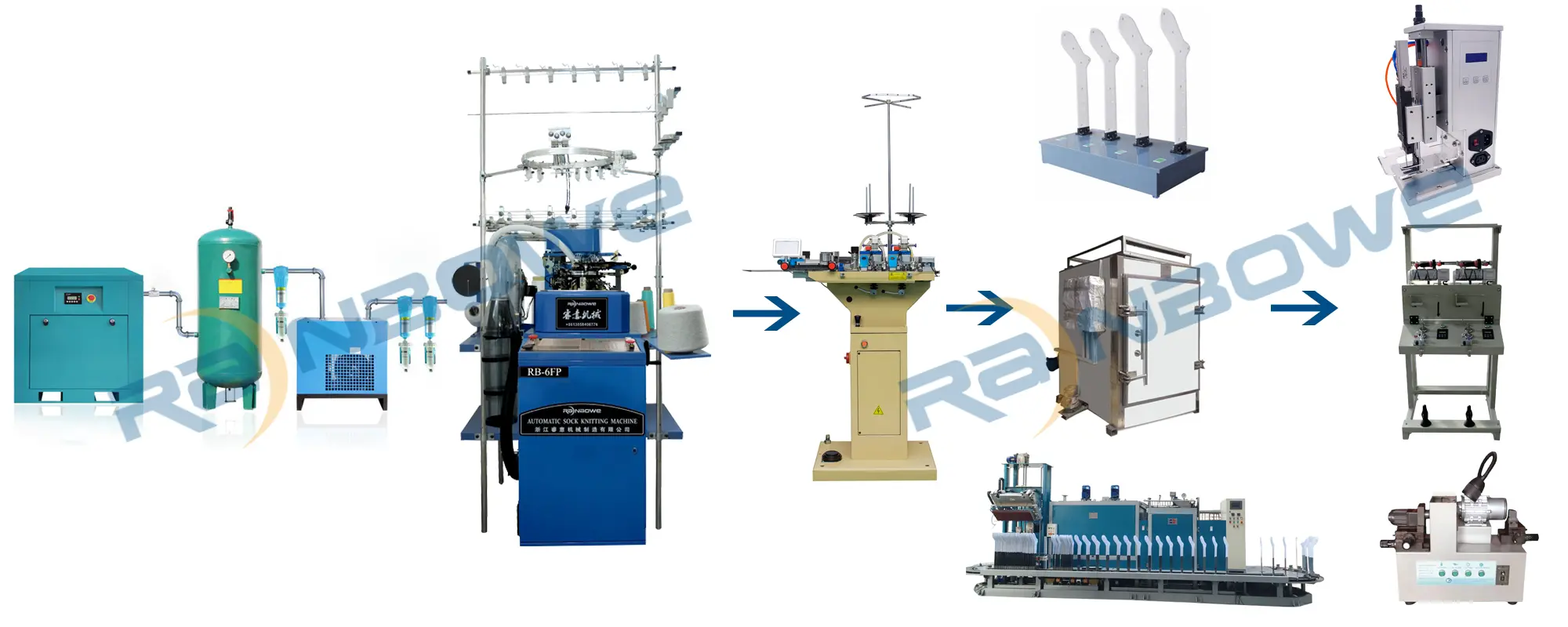

Sock Production Line
We can supply complete socks production line solutions. Our expertise covers everything from initial knitting to final packaging.
Sock Knitting Machine
Sock Linking Machine
Sock Boarding Machine

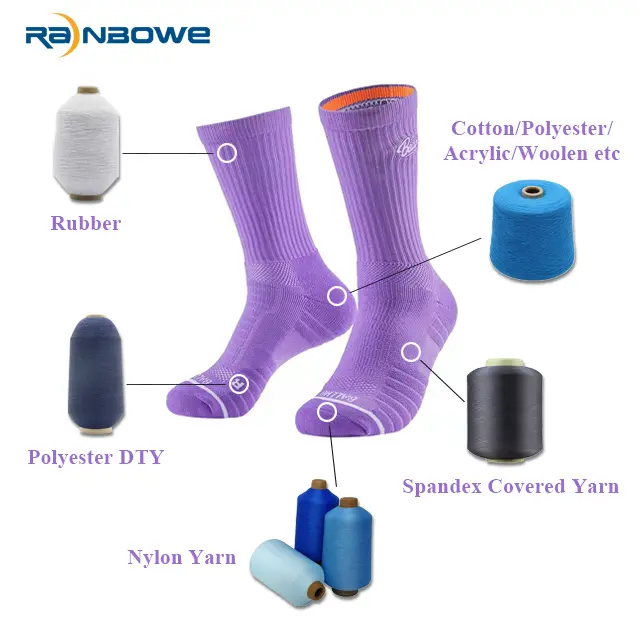

Sock Yarn
Sock Tagging Machine
Yarn Winding Machine
Air Compressor
Frequently Asked Questions (FAQ)
1. What is the production capacity of the Rotary Socks Boarding Machine?
The machine has a high capacity of 60 to 90 dozen per hour, depending on the cycle time and operator efficiency.
2. How many operators are required for this machine?
The machine is designed for efficiency and requires only 1 to 2 operators to manage the entire process.
3. Does it feature an automatic unloading system?
Yes, this square rotary steam setter is equipped with an auto-stripper, which allows for fully automatic sock removal.
4. What are the power and steam requirements?
The machine runs on 3P 380V power (4kw/h), requires steam pressure of 3kg/cm², and has a steam consumption of approximately 70kg/h.
5. What is the standard cycle time for sock boarding?
The cycle time is highly efficient, ranging between 6 to 9 seconds per cycle.
6. Can you provide the full production line equipment?
Yes, we offer complete sock production lines including knitting, linking, boarding, tagging, and air compression systems.
